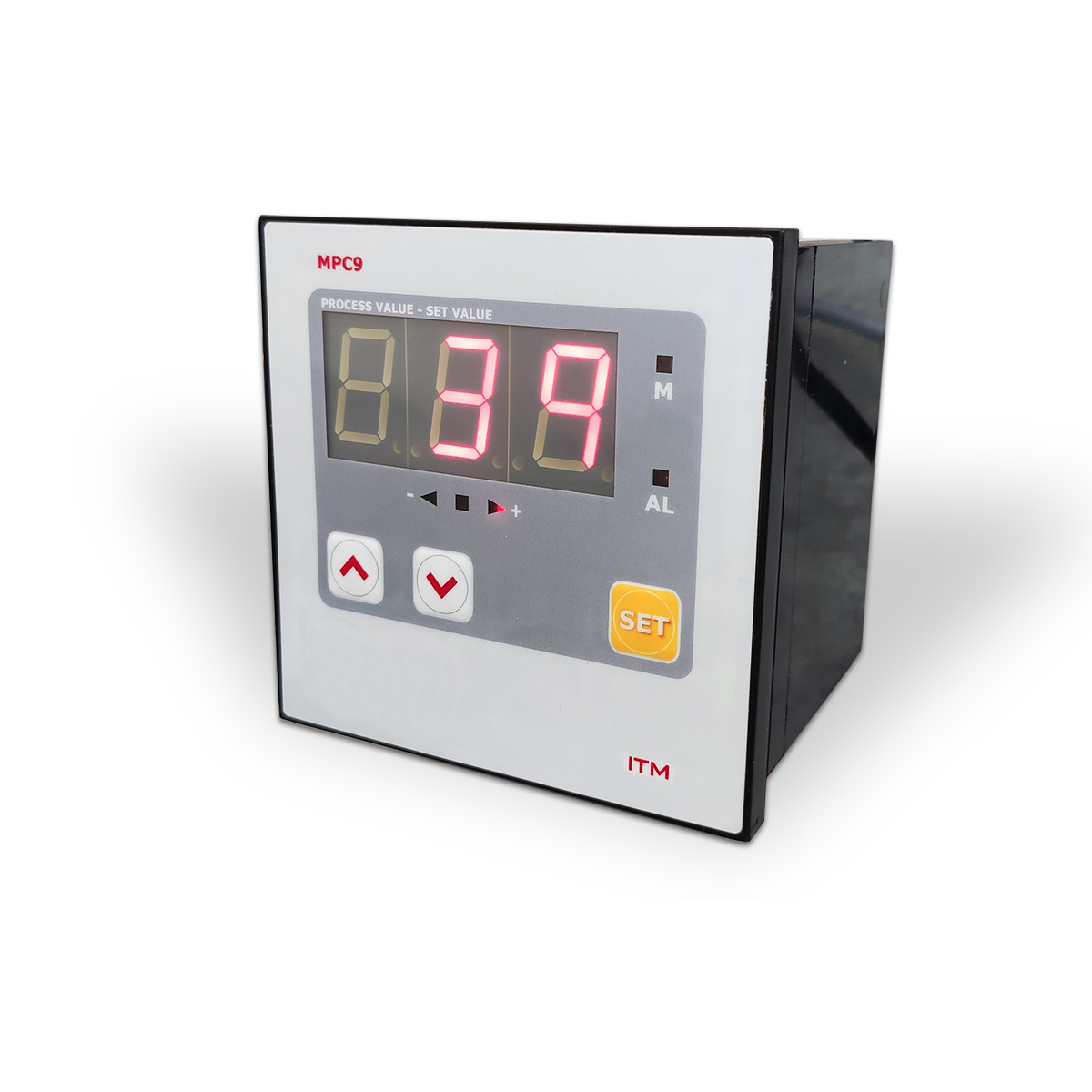

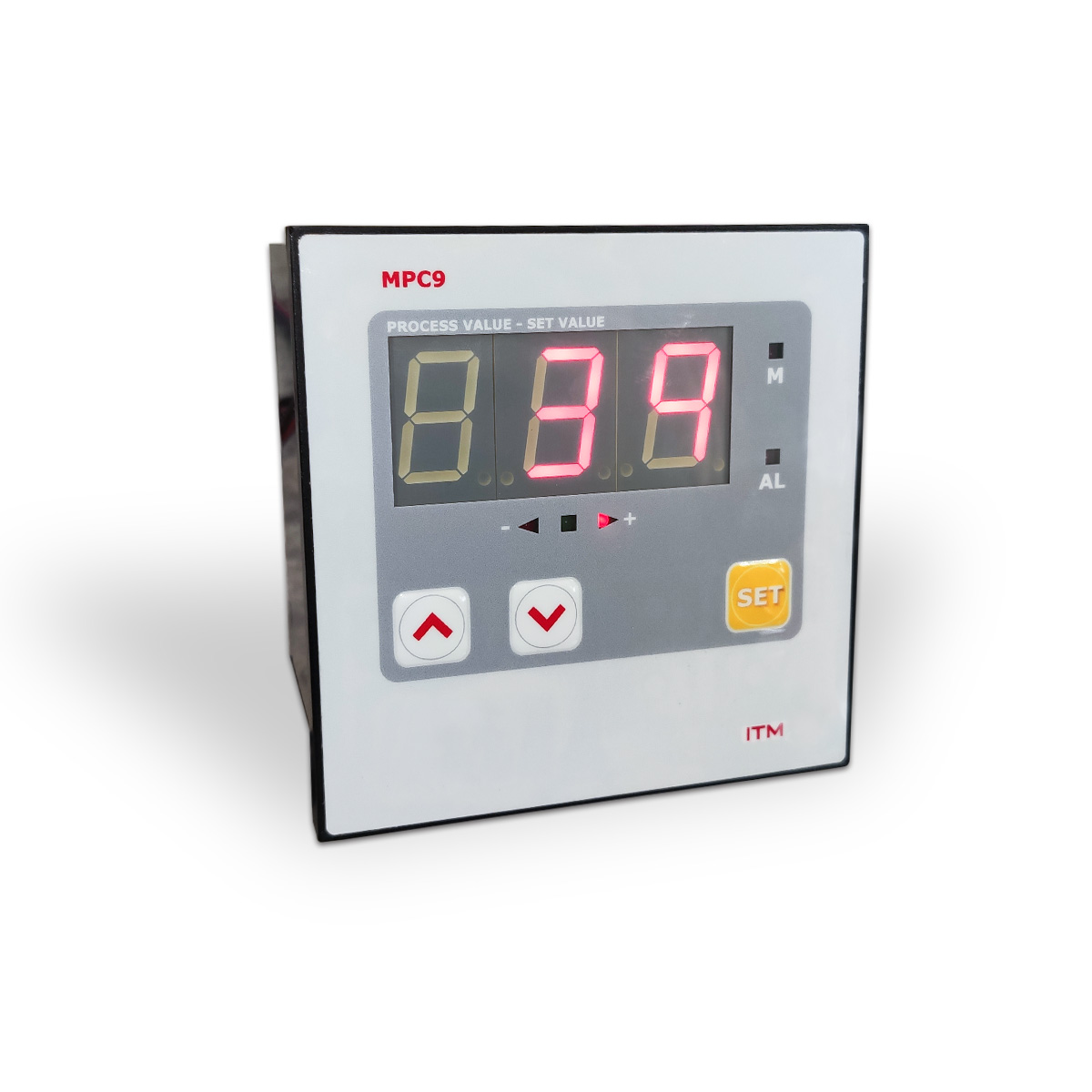

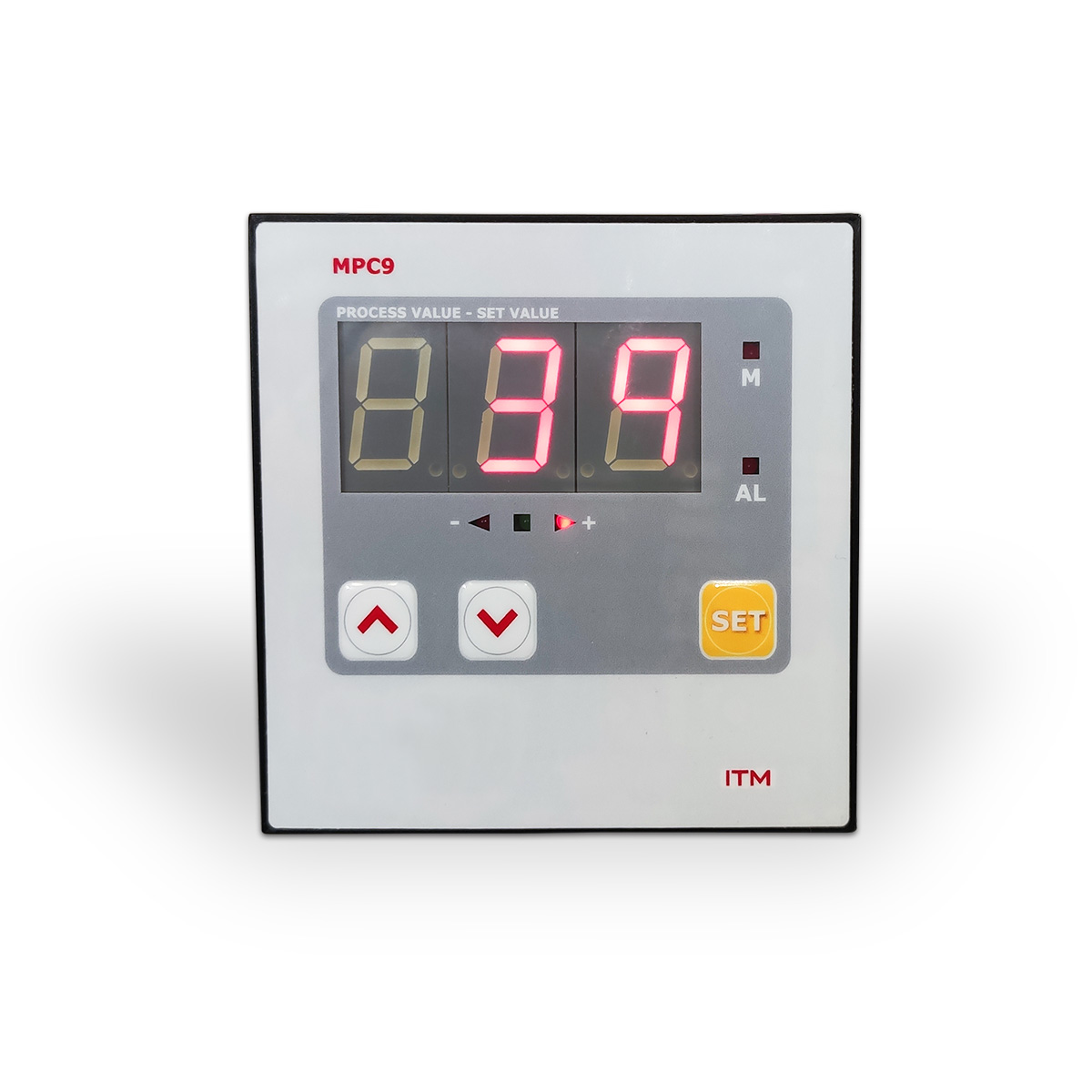

MPC9

MPC9

Size: 96×96 mm, 92 mm depth
Polyester front panel, scratch proof (IP65)
Display for input or set point, with 20mm digits
Programmable input keyboard, for thermocouple or PT100 RTD (°C or °F)
Led bar deviation meter
Main outputs control action may be programmed ON/OFF or PID type
Autotuning for the automatic calculation of optimum PID parameter values
Auxiliary alarm with 8A/250V relay, with programmable operation logic
Parameters and configuration values stored in non volatile memory
Lockable keyboard to protect against unauthorized access
